Elk Hill Farm

Goochland, Virginia

replacing the stucco
 retaining walls are deteriorated

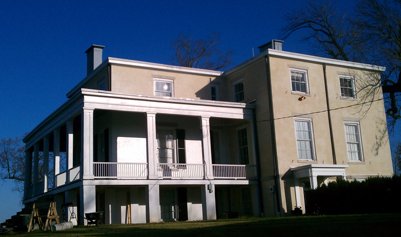

This project is phase 2, phase one being the
administration building we restuccoed 3 years ago.
Phase 2 is replacing the stucco on the wing
on the back.

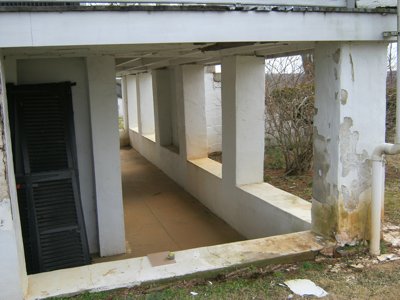

 		Before-stucco is badly deteriorated.
The old soft bricks under the stucco retaining walls are deteriorated because there is no drainage.

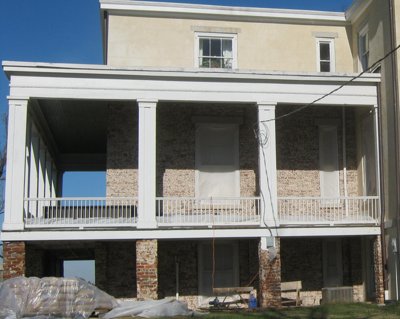

Stucco removed from old bricks
 old retaining walls had the bricks replaced
Stucco removed from old bricks, and the brickwork is repaired.

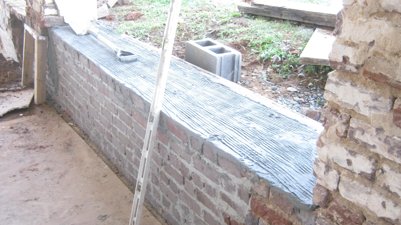

 Some of the old retaining walls had the bricks replaced.
the stucco protrudes out past the steps,
 drip edge protecting the stucco
The front and rear steps had the stucco replaced or patched several times.

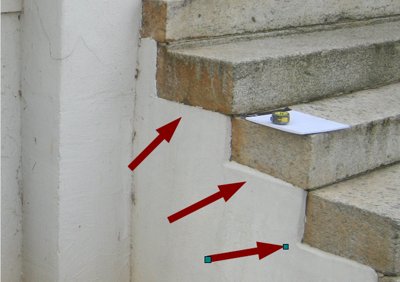

Arrows show how the stucco protrudes out
past the steps, allowing water to get in the wall.

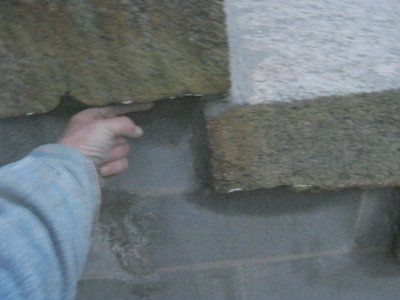

 		The steps were completely taken apart and
rebuilt to allow a drip edge protecting the stucco. The steps come out an inch and a half allowing room for the stucco and a drip edge. These old lime stone stair treads were cut with a chisel.
old well and an underground food storage building
 slave quarters.

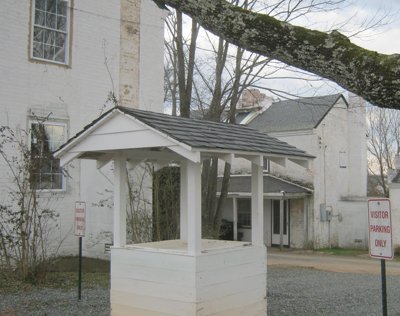

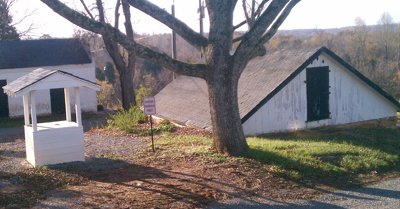

A virtual tour of Elk Hill. Here is an old well
and an underground food storage building.

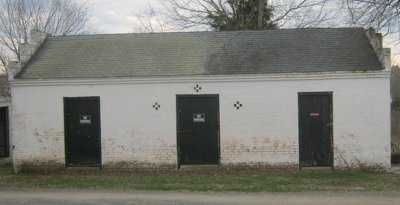

 The old slave quarters.
Two old 1800's houses
 rebuilding and stuccoing the chimney
Two old 1800's houses on the other side of the well.

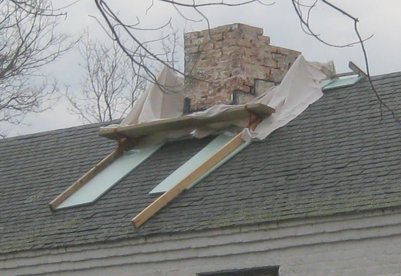

 We're rebuilding and stuccoing the chimney
on Mary's house. Mary was the cook at Elk
Hill in the 1970's
