Color stucco on spalled brick in Manassas, Virginia

Here's how we did it:

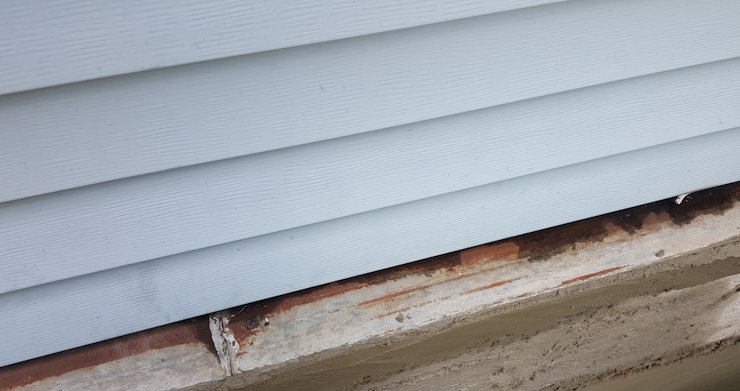

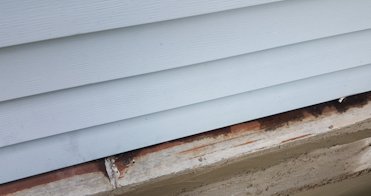

steel flashing had rusted through

Old steel flashing had rusted through. Flashing was angled backwards.

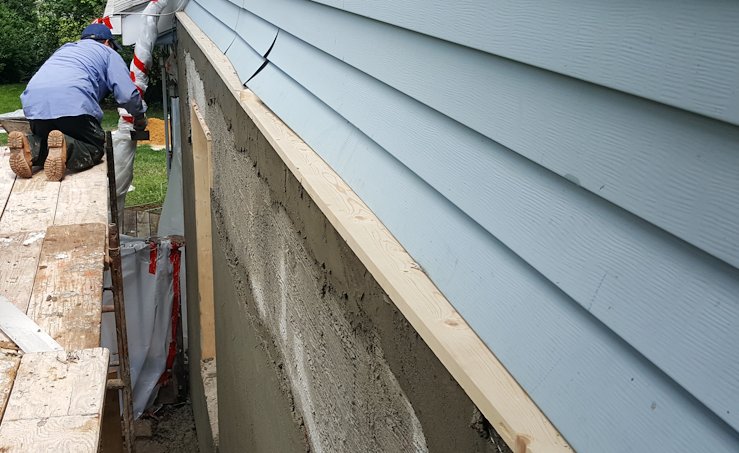

one by is pulled out and new flashing is put on

We put a one by four under the siding. The wall is straightened to the one by four.

Later the one by is pulled out and new flashing is put on.

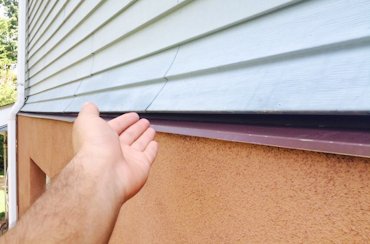

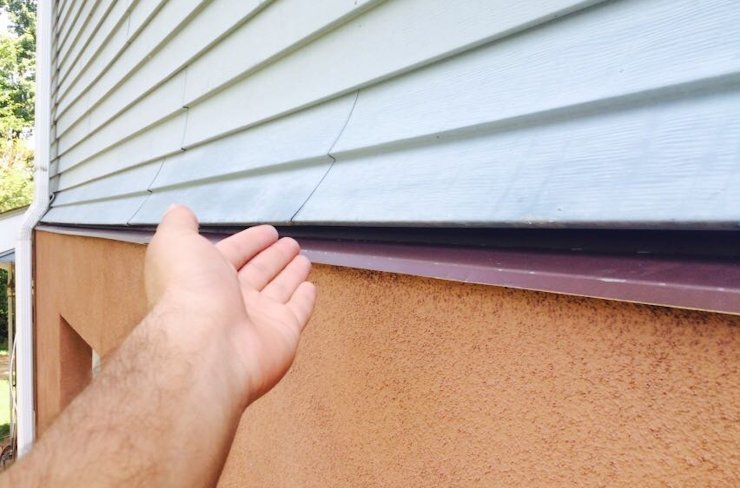

One by pulled out and flashing put on in Manassas, Virginia

Fast forward to finished wall. One by pulled out and flashing put in.

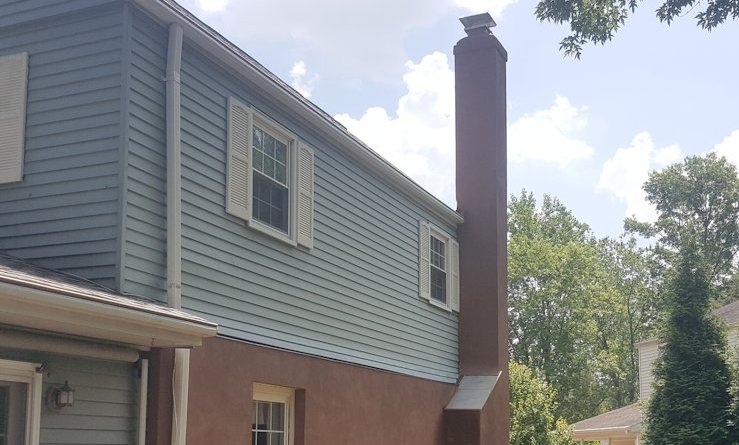

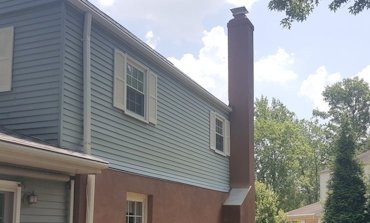

A view of the back finished

A view of the back finished, showing the siding and the chimney.

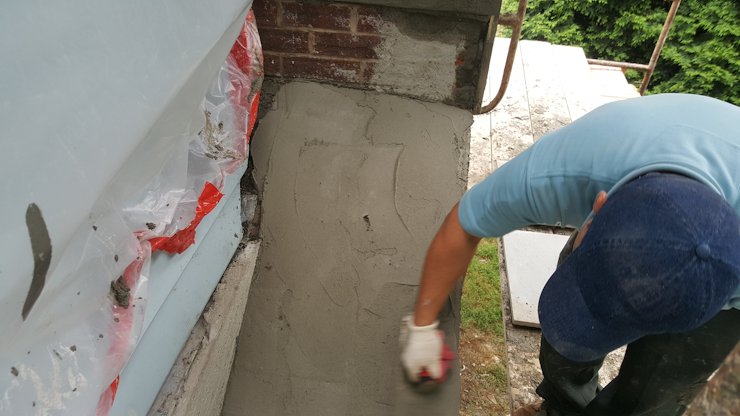

Chimney shoulder

Chimney shoulder is coated with mortar with plenty of flex-con, an acryiic bonder..

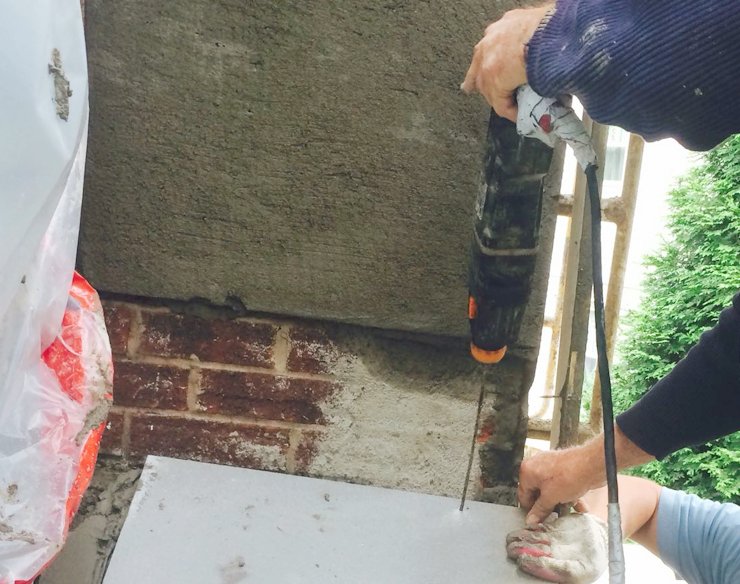

Flagstone is drilled with a hammer drill for the bolts

Flagstone is drilled with a hammer drill for the bolts.

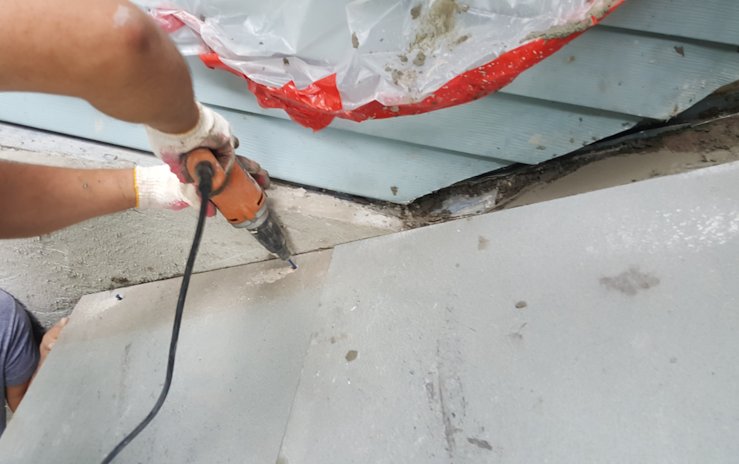

Concrete bolts are put in around the edge and hidden with flashing

Concrete bolts are put in around the edge and hidden with flashing.

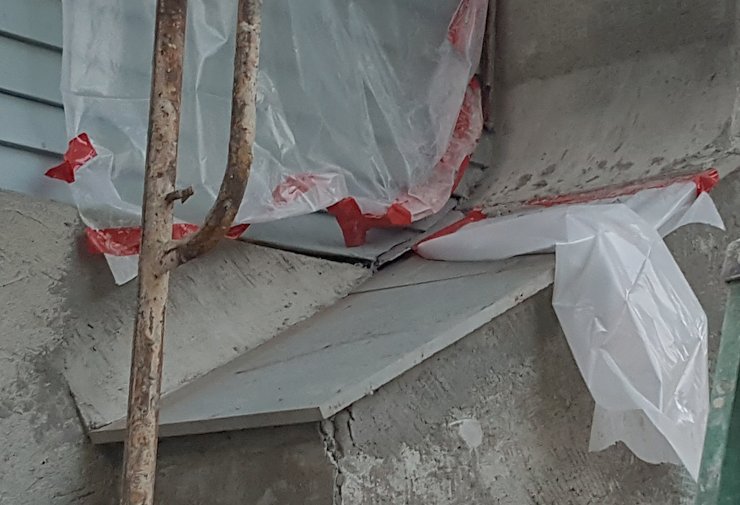

Bolts are hidden with flashing and mortar.

Bolts are hidden with flashing and mortar.

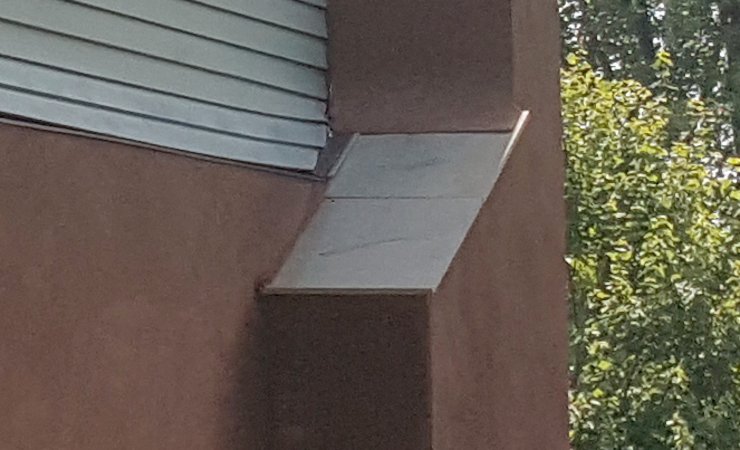

chimney with a flagstone chimney shoulder.

Finished chimney with a flagstone chimney shoulder. Stones are less porous than brick or stucco.

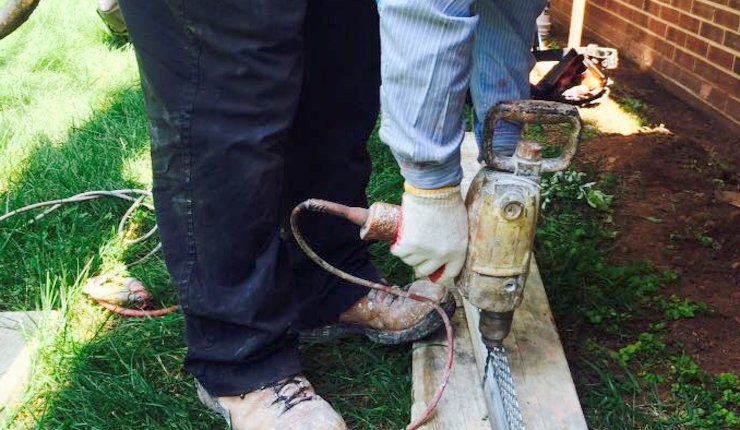

Weeps are made by drilling holes in casing bead

Weeps are made by drilling holes in casing bead, AKA plaster stop.

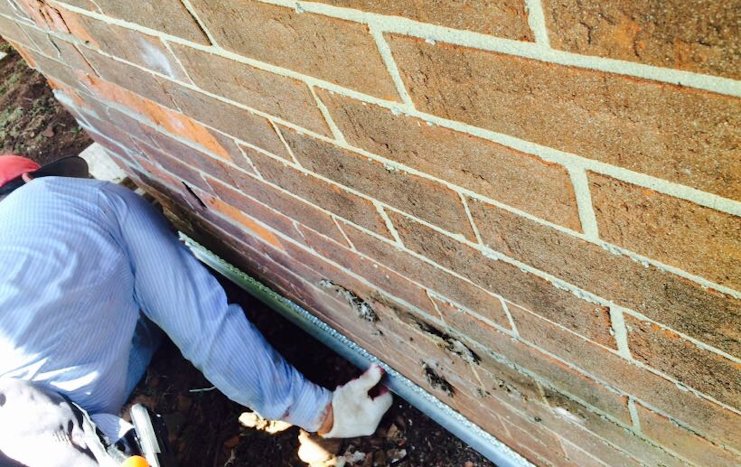

Weeps are set at bottom of the wall

Weeps are set at bottom of the wall, leaving a gap for drainage.

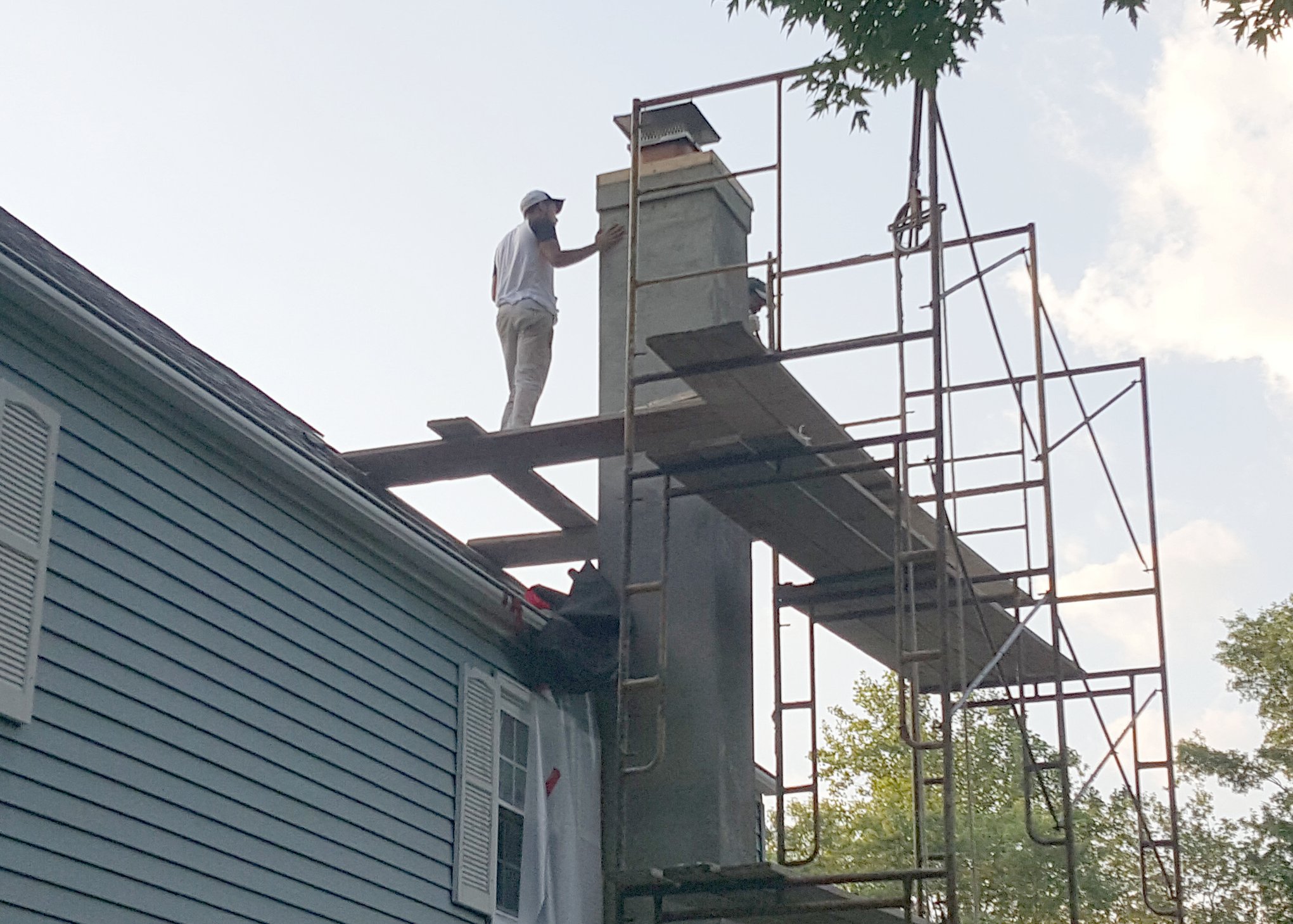

Reaching skyward

Reaching skyward.

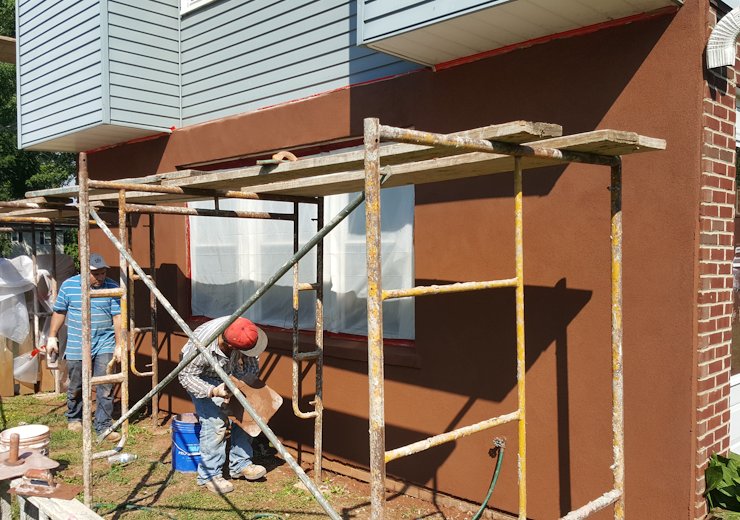

Color finish is put on and rubbed with a rubber float

Color finish is put on and rubbed with a rubber float.

Color is rugged brown from Sherwin-Williams

Color is "rugged brown" from Sherwin-Williams.
